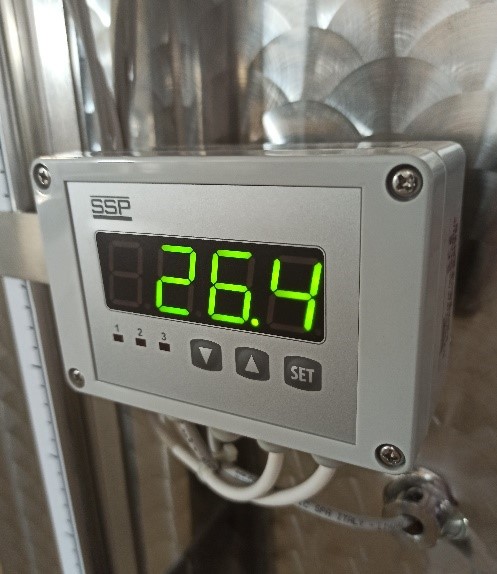

THERMO REGULATOR



The thermo regulator can be used alternatively for the regulation of heating or cooling systems, the regulation of the temperature in cooling jackets on stainless steel tanks, the regulation of the temperature in cooling plates or cooling tubes. It includes:


  • a control module with digital heat gauge
  • a magnetic valve 1/2" or 3/4", optional in brass
  • electrical cable 230Volt-50Hz in a standard lenght 5m or 3m
  • temperature probe
  • stainless steel element to mount the thermo regulator on the tank or cellar wall.




MANUAL GRAVITY BOTTLE FILLER



Article Volume Capacity tank Weight
PS6e 650bottles/h 45l 35 kg

The manual gravity bottle filler is a great alternative for bottling smaller quantities of vine or other liquids.



  • Dimensions: 820x450x1000 mm
  • Structure entirely produced from stainless steel AISI304BA
  • With 6 filling valves
  • Inflow control with mechanical floater
  • Liquid inlet: ball valve ½«
  • Liquid outlet: ball valve ½«
  • Suitable for bottles with diameters up to max. 140mm
  • Adjustable bottle height: btw. 50mm –max.400mm
  • Level indicator in front
  • Filling valve diameter 15mm

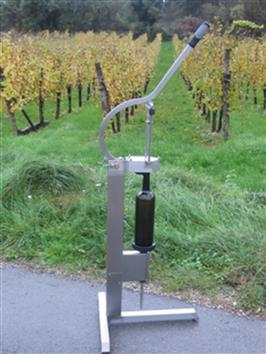

STAINLESS STEEL CORKER FOR STANDARD BOTTLES - PL2


Article Volume Capacity header tank Weight
PL-2 375ml, 500ml, 750ml, 1l, 1,5l 500 standard bottles/hr 13 kg

The machine is equipped with a pneumatic cylinder. Pressing the stainless steel handle down releases the air in the cylinder, which mechanically compresses the corking jaws, forcing the cork into the bottle. A small air compressor is required to refill the air cylinder.


  • hard polythene corking jaws
  • stable stainless steel frame
  • adjustable bottle turret
  • suitable for natural and synthetic corks corks with diameters of 22-26mm and up to 45 mm in height
  • bottle diameter up to 110mm, bottle height: 240-410mm



STAINLESS STEEL CORKER FOR CHAMPAGNE BOTTLES - PL3


Article Volume Capacity header tank Weight
PL-3 475 ml, 500 ml 750 ml, 500 ml 300 champagne bottles/hr 25 kg

The machine is equipped with a pneumatic cylinder. Pressing the stainless steel handle down releases the air in the cylinder, which mechanically compresses the corking jaws, forcing the cork into the bottle. A small air compressor is required to refill the air cylinder.

  • hard polythene corking jaws
  • stable stainless steel frame
  • adjustable bottle turret
  • suitable for natural corks with diameters of 24-30.5mm and up to 49 mm in height
  • bottle diameter up to 130 mm, bottle height: 260-390 mm

This new model can also be used to cork normal wine bottles, corks with diameters of 24-28 mm and up to 49 mm in height.

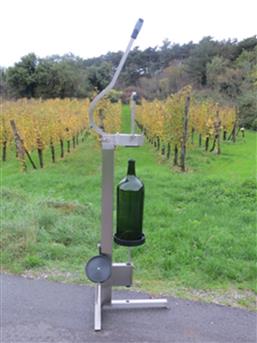

STAINLESS STEEL CORKER FOR MAGNUM BOTTLES - PL2M



Article Volume Capacity header tank Weight
PL2-M 3l, 6l, 9l, 12l 200 magnum bottles/hr 17 kg

The machine is equipped with a pneumatic cylinder. Pressing the stainless steel handle down releases the air in the cylinder, which mechanically compresses the corking jaws, forcing the cork into the bottle. A small air compressor is required to refill the air cylinder.


  • hard polythene corking jaws
  • stable stainless steel frame
  • adjustable bottle turret
  • suitable for natural and synthetic corks with diameters of 30-37mm and up to 49 mm in height
  • bottle diameter up to 200 mm, bottle height: 400-790 mm
